Type 3130-F

~ 51 mm

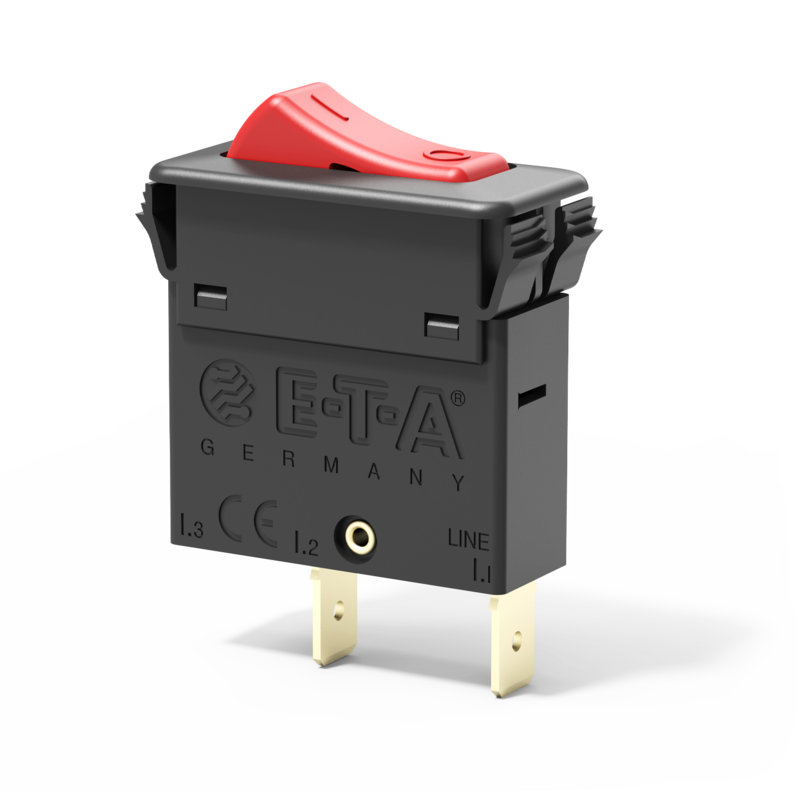

Typ 3130-F von E-T-A: Ein- bis dreipolige Kombination Schutzschalter/Ein-Aus-Schalter oder Taster mit Schaltwippe

Description

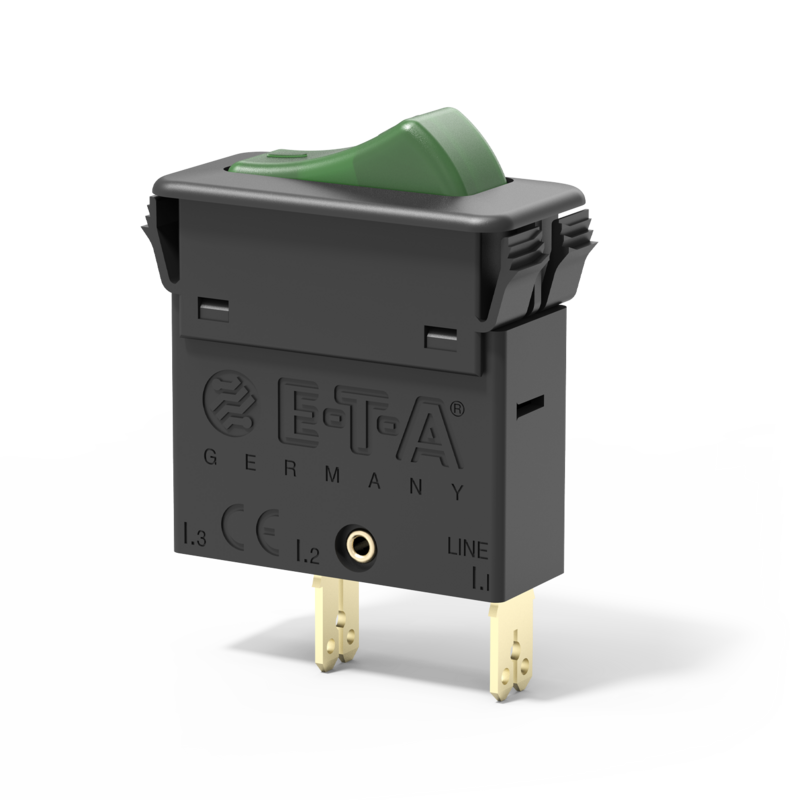

Single, two and three pole rocker switch/thermal trip free circuit breakers (S-type TO CBE to EN 60934) of compact design for snap-in panel mounting. Available either with protection on one/both/all poles or, in the case of the double pole version, protection on one pole only. Illumination is optional and there is a choice of rocker colours.

Approved to CBE standard EN 60934 (IEC 60934). Also available with X3130 Power Entry Module.

Technical Data

Voltage rating
  • 3 AC 415 V
  • AC 240 V
  • DC 50 V
  • UL/CSA: 3 AC 250 V
  • UL/CSA: AC 250 V
Current ratings from 0.1 A up to 20 A  1 pole
from 0.1 A up to 16 A  2 and 3 pole
Number of poles double pole
single pole
three pole
Mounting method flange
Terminal design blade terminals
screw terminals
Actuation rocker
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination with illumination
without illumination
Typical life 30,000 operations at 1 x IN, inductive, 1 and 3 pole

50,000 operations at 1 x IN, inductive, 2 pole
Interrupting capacity Icn 0.1...2 A: 10 x IN

2.5...20 A: 150 A 1 pole

2.5...16 A: 250 A 2 pole

2.5...12 A: 150 A 3 pole

14...16 A: 130 A 3 pole
Certificates VDE, UL, CSA

Accessories

Order number Description
X22125801

splash cover transparent for 3-pole version

X222420...

rocker, symbols/legends available

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
  • Watercraft & Vehicles
