Type 1170

~ 52 mm

Description

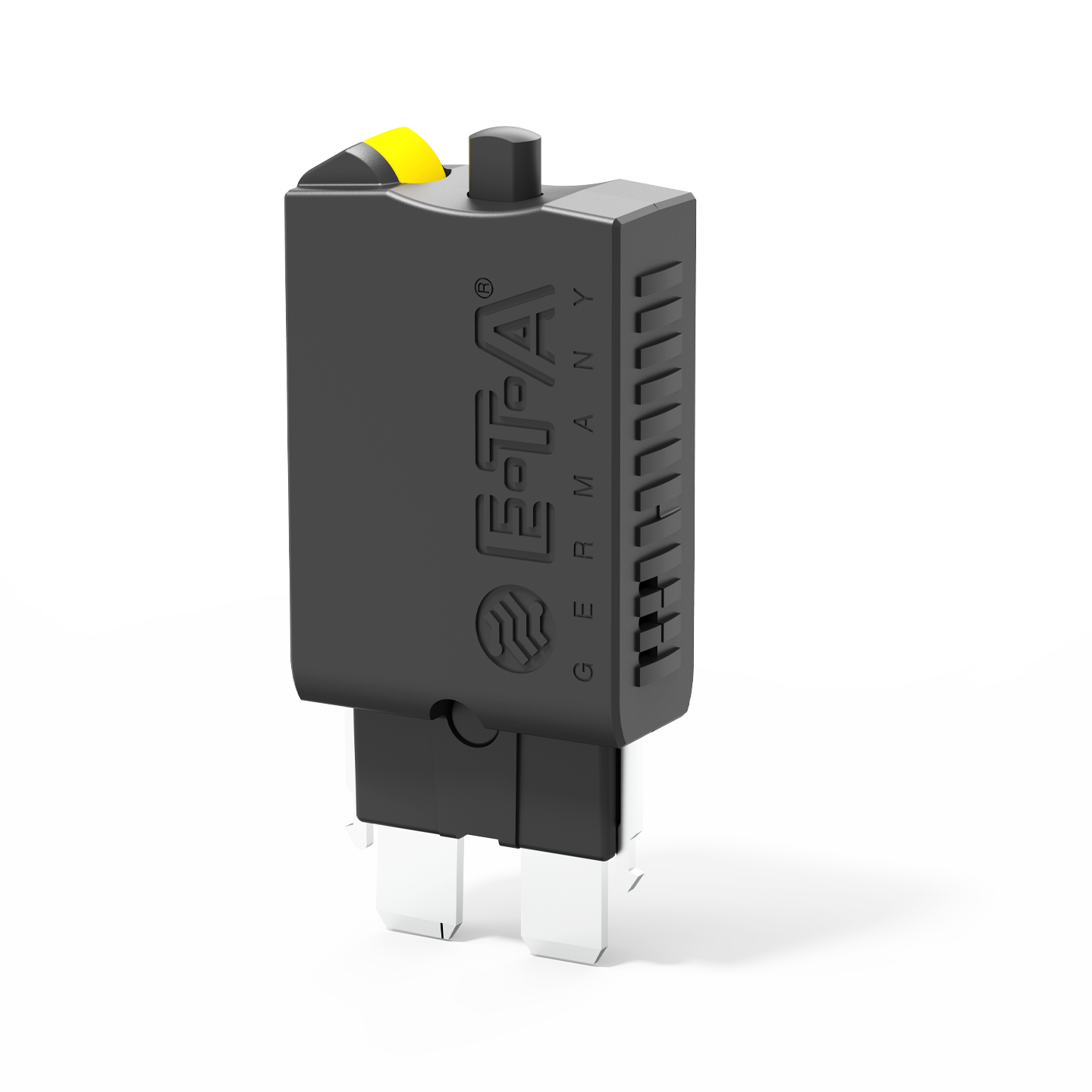

Compact single pole thermal circuit breaker with push-to-reset, tease free, trip free, snap action mechanism and separate (colour coded) manual release. Combining full feature circuit breaker protection and convenience with low cost of ownership benefits. Fitted with blade terminals for plug-in mounting.

Type III to SAE J 553. Standard trip curve to ISO 10924.

Version 1176 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.

Technical Data

Voltage rating
  • DC 12 V
  • DC 24 V
  • DC 48 V
Current ratings from 3 A up to 25 A
Number of poles single pole
Mounting method socket
Terminal design blade terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life at rated current:

3...25 A 6,000 opeations at IN

3...20 A 3,000 opeations at 2 x IN

25 A 1,000 opeations at 2 x IN
Interrupting capacity Icn 400 A

Accessories

Order number Description
12-P10/-J20/-A10

sockets

X21058801-04

Connector bus links -P10

01 = 1.5 mm2 brown



02 = 2.5 mm2 black



03 = 2.5 mm2 red



04 = 2.5 mm2 blue

X21115701/02

busbar for mounting socket

01 = with terminal



02 = without terminal

Applications

  • Automated guided vehicles (AGV)
  • Automobiles
  • Commercial Vehicles
  • Forklifts
  • Lighting technology
  • Rail vehicles
  • Watercraft & Vehicles
