ESX10
Electronic circuit protector, ESX10, DC 24 V, plug-in type, fixed current rating, no. of channels 1

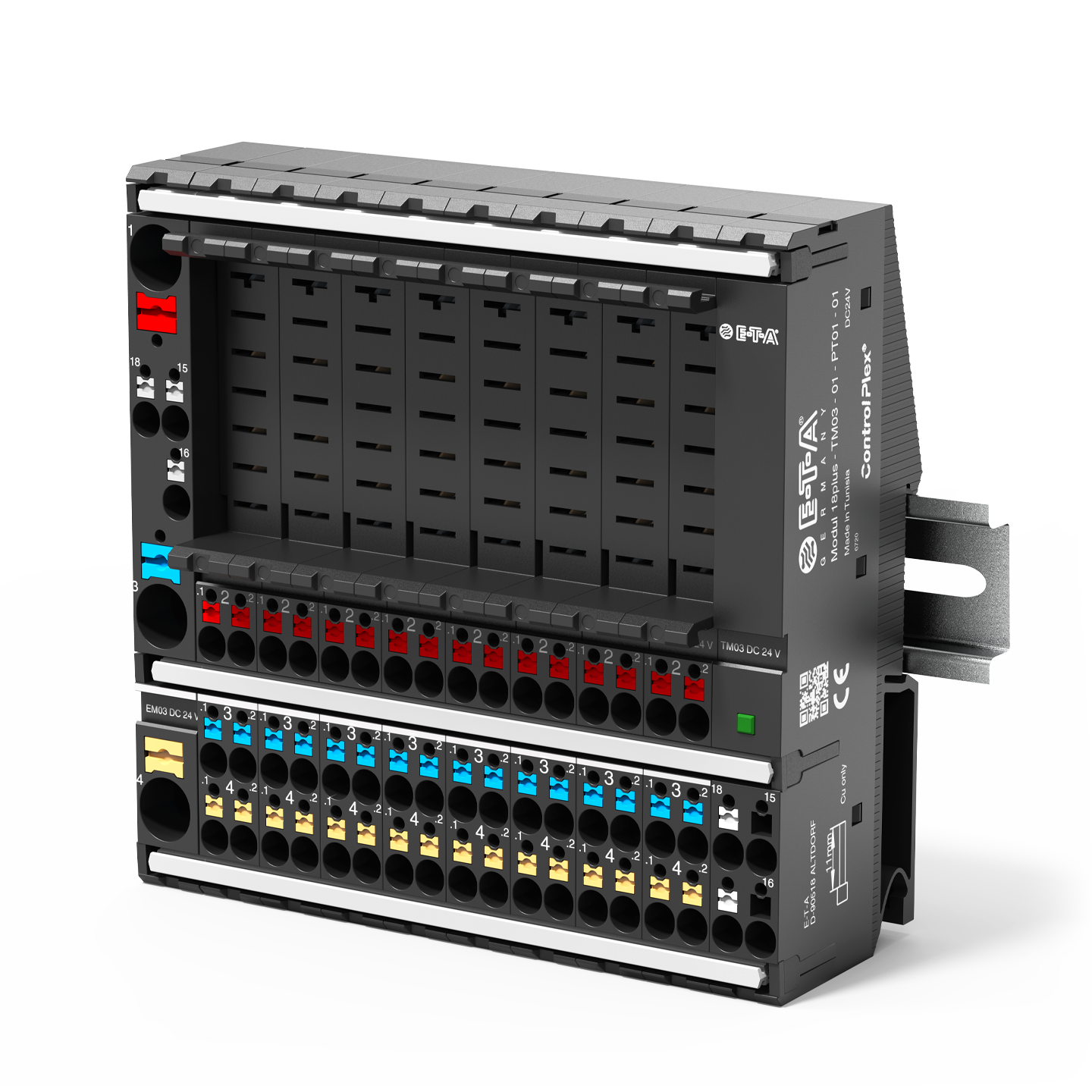

Type Module 18plus
Description

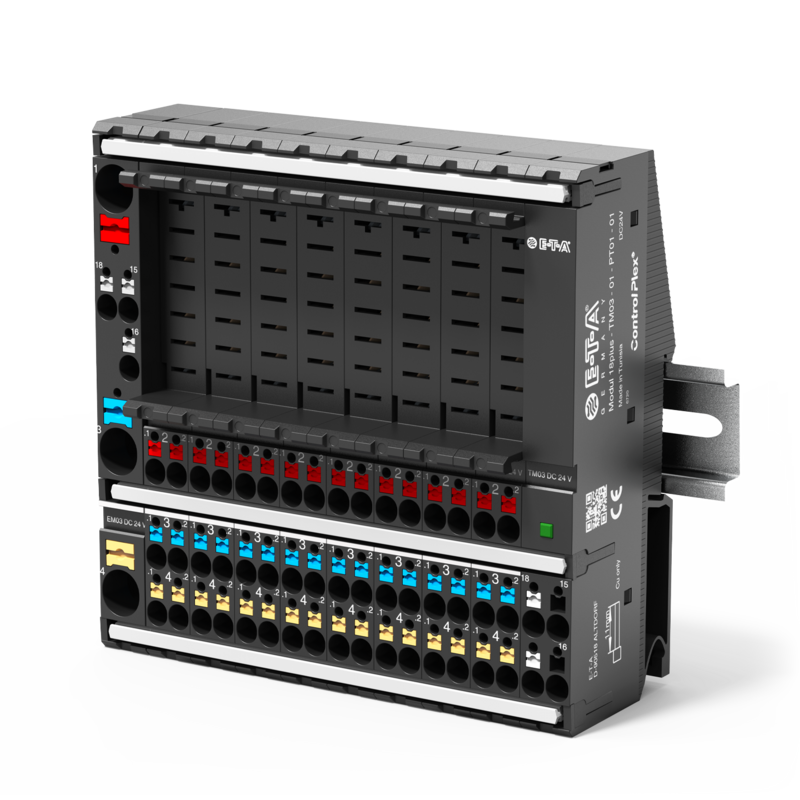

The new power distribution system Module 18plus is a compact wiring solution for all load and signal lines of the DC 24 V control voltage - no matter whether it is for decentralised power distributions or for centralised plant concepts. The system accommodates various E-T-A circuit breakers and overcurrent protectors and holds a complete mounting and power distribution system with state-of-the-art push-in technology for DIN rail mounting.
Technical Data
| Mounting method | DIN rail |
|---|---|
| Circuit breaker type |
electronics thermal-magnetic |
| Max. rated voltage | DC +24 V |
| Number of channels | 1 x 12 non-redundant |
| For circuit breaker type |
2210 1-pole 2210 2-pole ESS30 ESX10 |
| Supply | non-redundant |
| Supply max. current rating | 100 A |
| Supply terminal type | Spring-loaded terminals |
| Max. current rating of loads | 125 |
| Signalling | Make contacts connected in series |
| Operating temperature range | -30 … +60 °C |
| Further technical data |
are available upon request |
Accessories
| Order number | Description | |
|---|---|---|
| Y30775401 |
retaining clip |
|
| Y31197801 |
Retaining clip for ESS30-S |
|
| SB-S11-P1-01-1-1A |
jumper |
|
| X22261102 |
busbar |
|
| X22357101 |
busbar |
Applications
- (Steel industry)
- Automation
- Automobile production
- Chemical, Oil & Gas
- Mechanical engineering
- Pharmaceutical & Food
- Power Engineering DC 24 V
- Rail vehicles
- Renewable energies
