Type: 482

Description

~ 67 mm

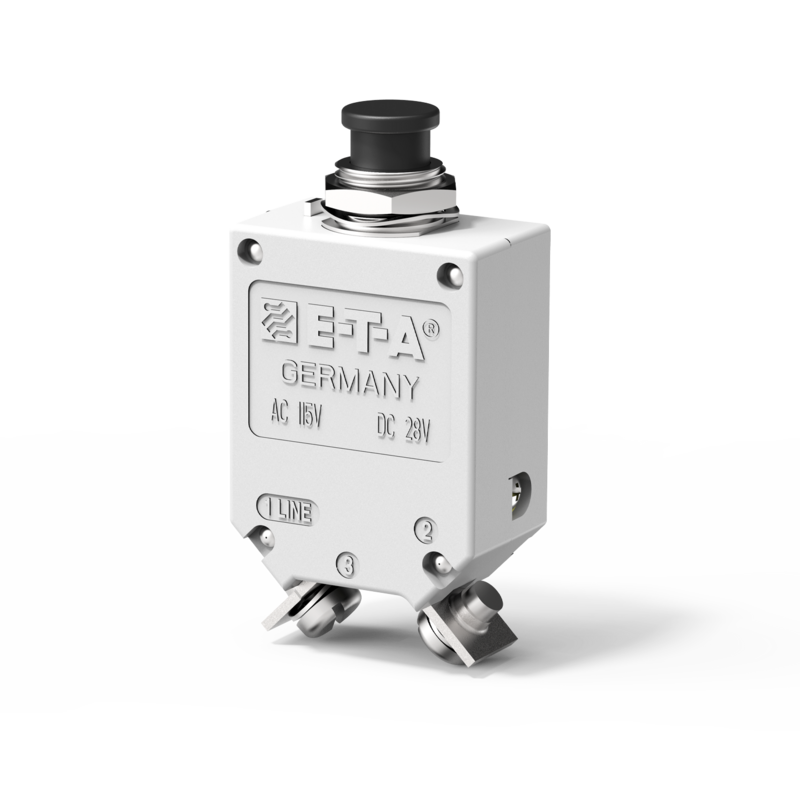

Single pole compact high performance thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted in tracked vehicle and aircraft/general purpose versions, with optional auxiliary contacts.

Downloads

Data sheet

Technical Data

Technical Data

Voltage rating
  • AC 115 V (400 Hz)
  • DC 28 V
  • AC 230 V (50/60 Hz) to special order
Current ratings  from 0.1 A to 50 A
Typical life 10,000 operations mechanical
5,000 operations at IN
Interrupting capacity Icn 0.1...2.5 A: 15 x IN
3...3.5 A: 250 A DC / 150 A AC
4...7 A: 500 A
7.5...50 A: 6,000 A DC / 1,000 A AC
35...50 A with auxiliary contact:
3,000 A DC / 1,000 A AC
Number of poles
  • single pole
Mounting method
  • threadneck
  • socket
Terminal design
  • blade terminals
  • screw terminals
Actuation
  • manual release
  • push button
Auxiliary contacts
  • with auxiliary contacts
  • without auxiliary contacts
Water splash protection
  • with water splash protection
  • without water splash protection
Illumination
  • without illumination
Approvals VG 95345 part 21, QPL Canada, UL, CSA

Accessories

Accessories

Order numberDescription
X 200 802 01splash cover black with O-ring, nickel plated nut
X 200 803 01actuator extension
Y 307 004 01-05identification collar
Y 307 005 01lock out ring
X 200 801 03splash cover black with O-ring
X 200 801 08splash cover transparent with O-ring
X 200 802 02splash cover black with O-ring, matt black finish nut
