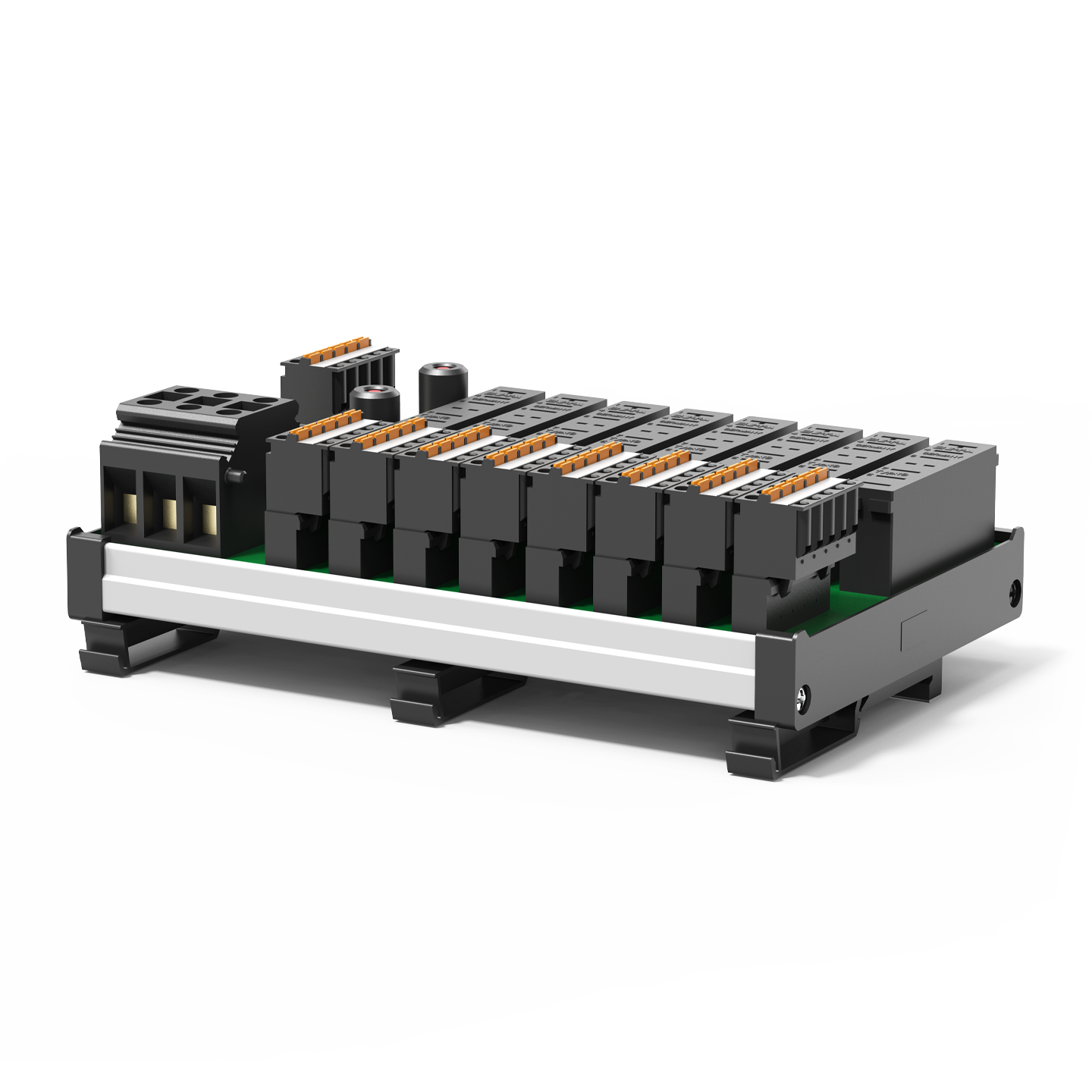

Type SVS21
~ 172 mm
Description
The power distribution system SVS21 for DIN rail mounting distributes all voltage potentials supplied by a 24 V power supply (SMPS) onto 8 ways and selectively protects the connected loads by means of the circuit breaker fitted. With a max. load current of 8 A per way and a max. total current of 40 A the SVS21 provides ease of distribution and sub-distribution in short-circuit-limited DC 24 V applications. The protected »L+« load outputs per way allow direct connection of 0 V return conductor or functional earth (FE) and help to significantly reduce wiring time.
Suitable for the following E-T-A circuit breaker types:
electronic circuit breaker ESS30..
electronic circuit protector ESX10-103..
Technical Data
| Mounting method | DIN rail |
|---|---|
| Circuit breaker type | electronics |
Accessories
| Order number | Description | |
|---|---|---|
| Y30388108 |
insulated wire bridge |
|
Applications
- Automation
- Chemical, Oil & Gas
- Pharmaceutical & Food
- Power Engineering DC 24 V
