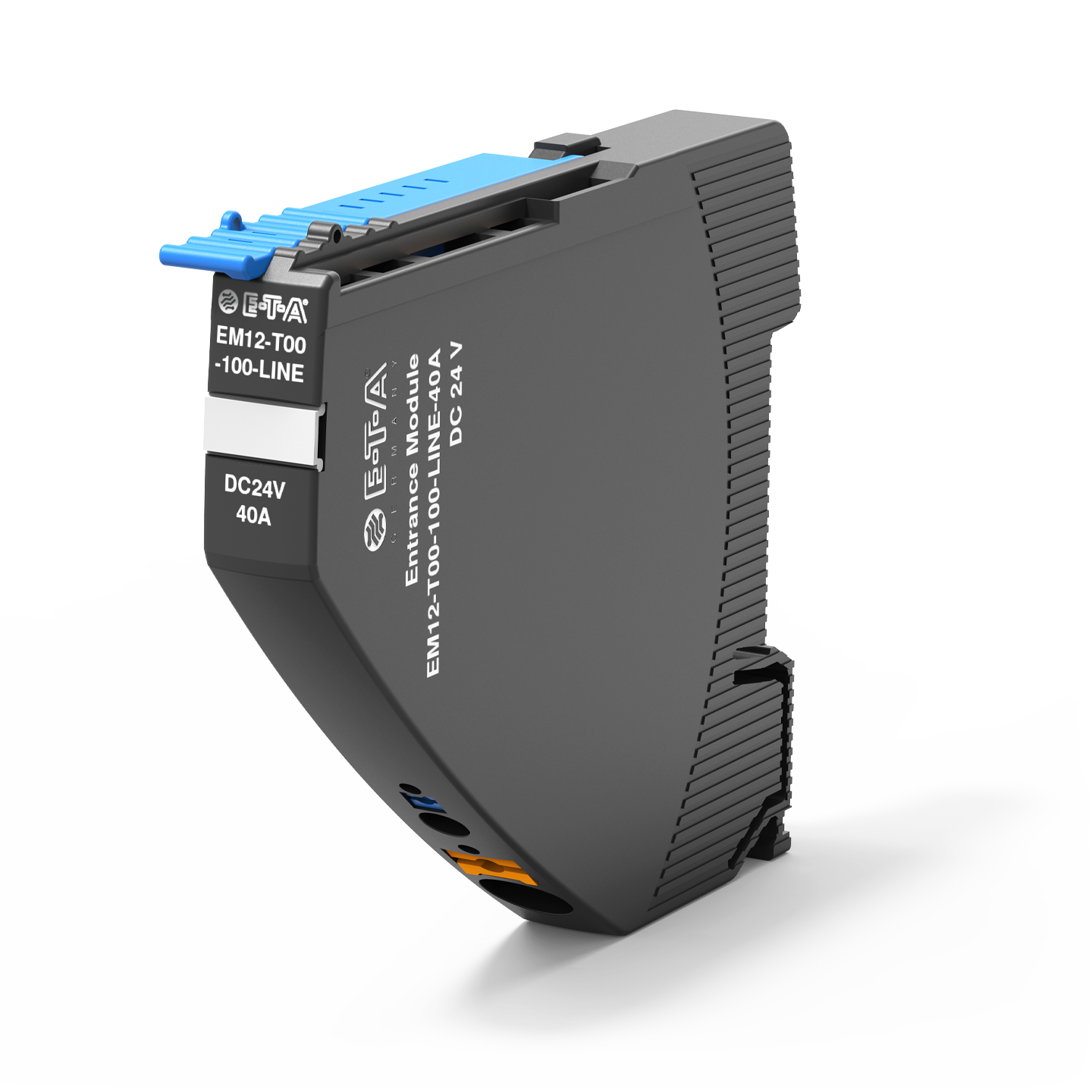

Type EM12-T (LINE)
Description
The EM12-T supply module takes the DC 24 V / DC 48 V supply voltage, e.g. from a pulsed switch mode power supply, and distributes it via the integral connector arm to the installed REX12-T / REX12D-T / REX22D-T circuit protectors.
The intermediate supply modules are installed between any two installed circuit protectors or to the right of the last circuit protector of a REX system.
Applications
- Mechanical engineering
- Automation
- Process industry
Technical Data
| Rated voltage | DC 24 V (18…30 V) |
|---|---|
| Rated current | 40 A |
| Ambient temperature | -30 °C ... +60 °C |
| Mounting method | rail mounting |
| Certificates | UL 1059, UL 2367, UL 508 listed, CSA C22.2 No. 14, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
