ControlPlex® System CPC20

Typical application

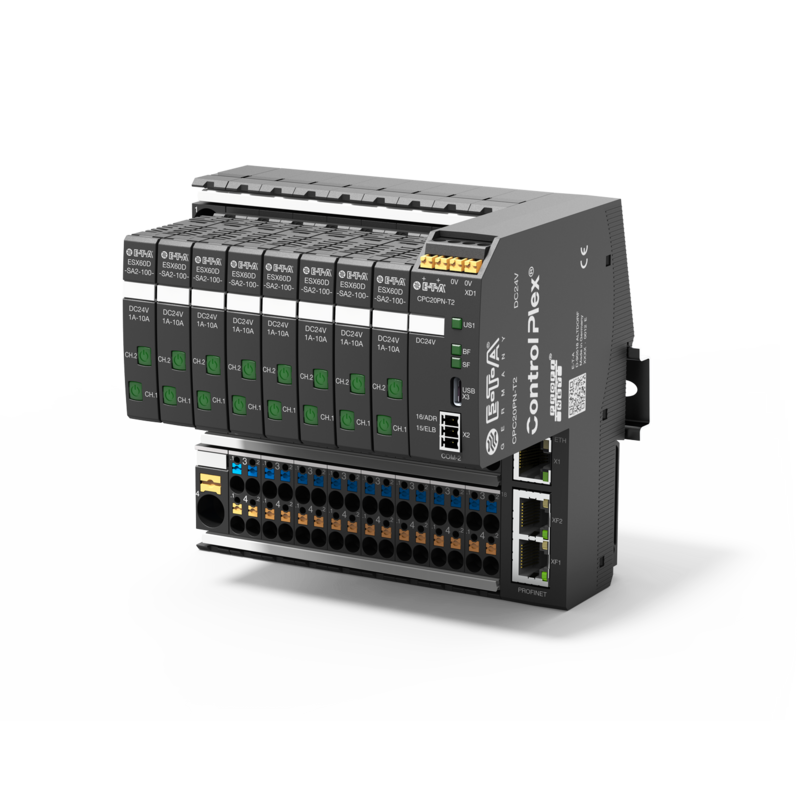

Thanks to its compact modular design, the intelligent CPC20 ControlPlex® bus controller with the modular 18plus unit enables space-saving integration in control cabinets with limited installation space - ideal for modern, densely equipped system concepts.

Applications

  • Process industry
  • Industrial automation
    Mechanical and plant engineering

Technology

The intelligent socket system with ControlPlex® protects the DC 24 V power distribution against damage caused by overload and short circuits. The basis is the modular terminal block system module 18plus. The ESX60D electronic circuit protector continuously records the load current and the load voltage of the system. The CPC20 bus controller collects all measuring values and forwards them as a bundle to the connected control systems via PROFINET.

The system operator can continuously monitor his power distribution system and detect changes or aberrations at an early stage. The CPC20 ControlPlex® bus controller prevents unplanned system downtimes and increases transparency. It also increases the quality of the produced goods and the system availability significantly."

System components

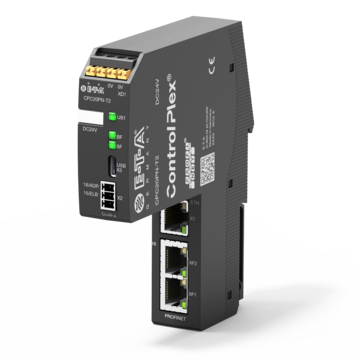

CPC20

Bus controller CPC20 is the central communication module

ESX60D

Smart electronic circuit protector, 2-channel, communicative, pluggable

Typ Modul 18plus von E-T-A: eine kompakte Verdrahtungslösung für alle Last- und Signalleitungen der DC 24 V-Steuerspannung.

Module 18plus

Flexible DC 24 V power distribution with integral cable harness
