ControlPlex® System CPC12

Transparency through web server and fieldbus connectivity

Typical application

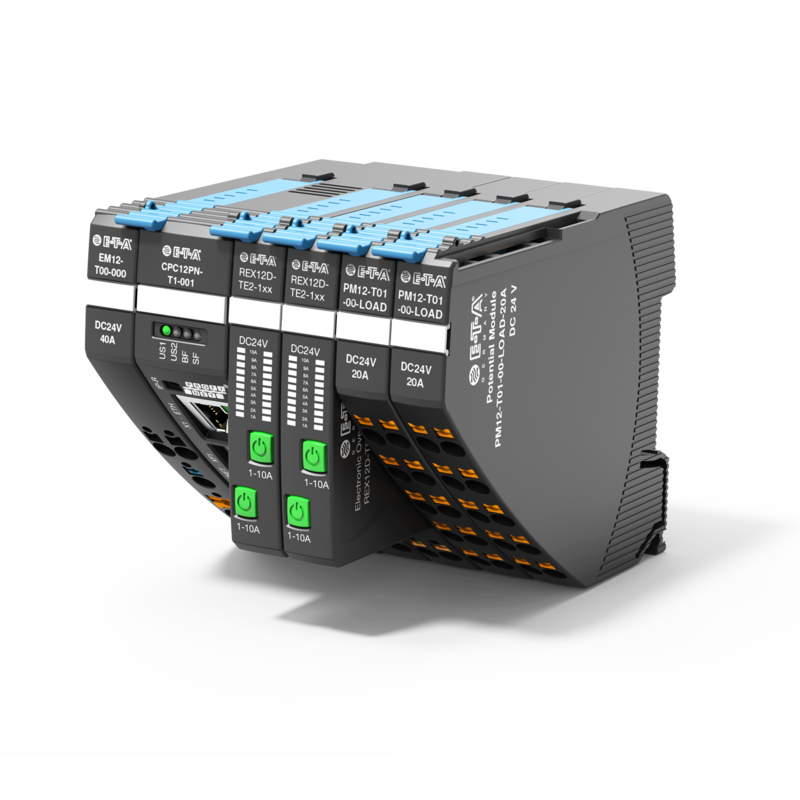

Thanks to its compact modular design, the communication-capable REX system with CPC12 ControlPlex® bus controller enables space-saving integration in control cabinets with limited installation space - ideal for modern, densely equipped system concepts.

Applications

  • Mechanical and plant engineering
  • Industrial automation
  • Process industry


Technologytry

The CPC12 ControlPlex® bus controller has a separate DC 24 V voltage supply, enabling an independent supply to the circuit protectors and recording all status information and measuring values. This data is visualised with the internal web server. The data can be made available to the superordinated control systems via the fieldbus interface.

System components

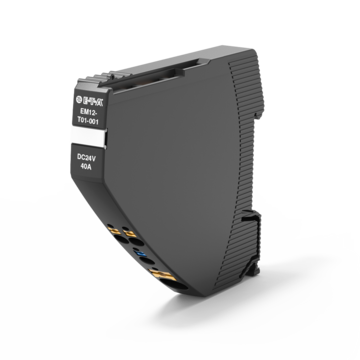

EM12-T (DC 24 V)

Switch mode power supply module with or without signal contact, DC 24 V

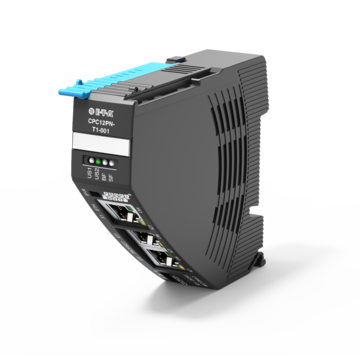

CPC12

Bus controller enables transparency and remote access for 24 V DC power distribution

REX12D-T

Electronic circuit breaker, REX12D-T, DC 24 V, rail mounting, fixed and variable current ratings, no. of channels 1/2, IO link, Modbus-RTU

REX22D-T

Electronic circuit breaker, REX-System BASE, REX-System COM

Optional components

EM12-T (LINE)

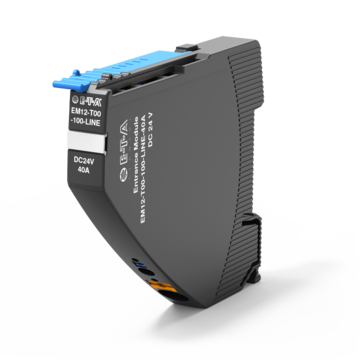

Intermediate supply module, DC 24 V / DC 48 V

EM12-T (GND)

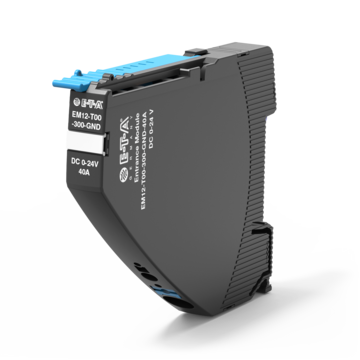

Supply module, DC 0 V

PM12-T (LOAD)

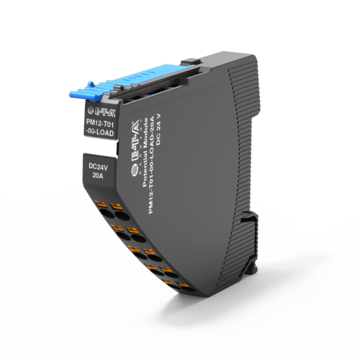

Potential distribution, DC 24 V

PM12-T (GND)

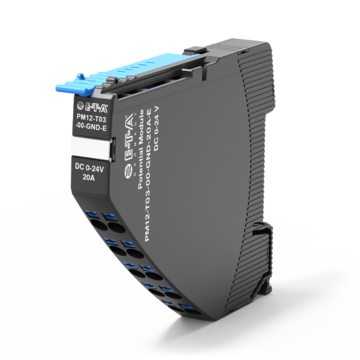

Potential distribution, DC 0 V
