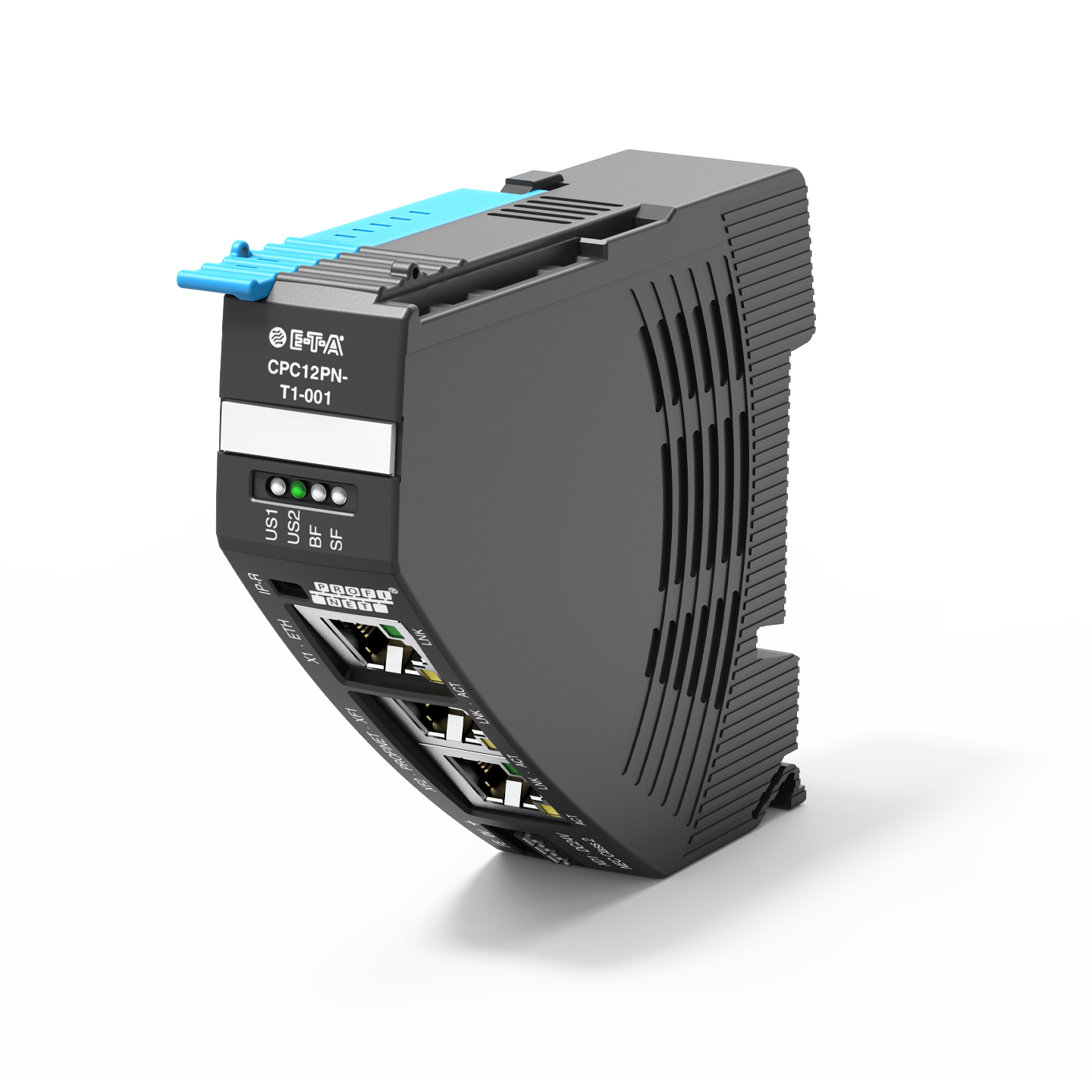

Type CPC12

Description

The intelligent CPC12 ControlPlex^® bus controller not only integrates DC 24 V overcurrent protection in the REX system, but makes it communication-capable by combining it with EtherNet/IP, PROFINET, EtherCAT and Modbus TCP.

The device features permanent measuring data recording, analysing and processing. This provides the required transparency to detect critical changes in the production process at an early stage and be able to initiate corrective actions in time.

The integral web server of the CPC12 bus controller allows direct access to the data of the DC 24 V power distribution unit, providing access to all measurement data and status information without using the fieldbus interface.

Applications:

Mechanical engineering
Automation
Process industry

SOFTWARE for ControlPlex^® systems:
The relevant software and firmware can be found in the download portal

Technical Data

Rated voltage	DC 24 V (18…30 V)
Rated current	40 A
Ambient temperature	-30 °C ... +60 °C
Mounting method	rail mounting
Certificates	UL 2367, UL 1310 NEC Class2, UL 508 listed, CSA C22.2 No. 14, CSA C22.2 No. 107.1, UL 121201 (Class I, Division 2, Groups A, B, C, D), CSA C22.2 No. 213, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, PROFINET, EtherNet/IP, EtherCAT, Modbus-TCP, REACH, RoHS, CE, UKCA
