Type: Power-D-Box with sockets pre-wired

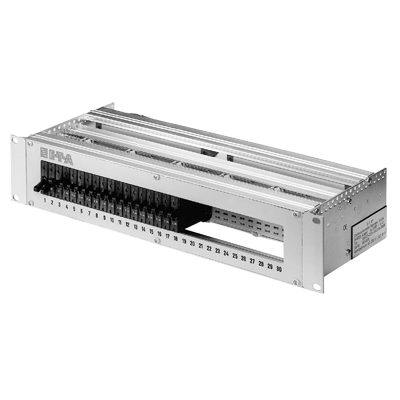

The compact 19inch Power-D-Box features aluminium profiled cross members with an anodized front plate. The panel cutout accommodates up to 30 positions numbered 1 through 30. Blanks cover unused positions, with 6, 12, 24 or 30 being ”open".

The rack can be fitted with plug-in type circuit breakers 3600/3900 and 2210, electronic circuit breakers ESS20 or electronic circuit protector ESX10 or E-T-A Solid State Remote Power Controllers (SSRPC) E-1048-600/700. Please specify the correct option according to the ordering information shown, as different depths as well as different heights of the front cut-out must be allowed for.
The devices are plugged into sockets 63-P10-Si (6 positions each). These sockets (S1...S5) are provided with 6.3 mm blade terminals on the rear.

Four busbars (X1...X4) with 6 (signalisation) or 15 (feed) positions each (6.3 mm blade terminals) provide easy terminal connection.

Prewired options available ex factory are:
- Parallel connected feed (2.5 mm2) with separate supply for each socket via busbars X1 and X2.
Choice of wiring colours: black, red, blue, grey. Outputs are not connected.
- Parallel connected auxiliary contacts (N/C) grouped per socket, 1 mm², via busbars X3 (supply) and X4 (signalisation).
Choice of wiring colours: black, red, blue, grey.
- Series connected auxiliary contacts (N/O) of all positions with 1 mm², via busbars X3 (feed) and X4 (signalisation). Choice of wiring colours: black, red, blue, grey.
- Custom designed connection according to specification.

Other fittings, e.g. back-up fuse, separate circuits or redundancy, multipole circuits, screw terminals, custom designed markings etc., are available to special order (please enquire).
