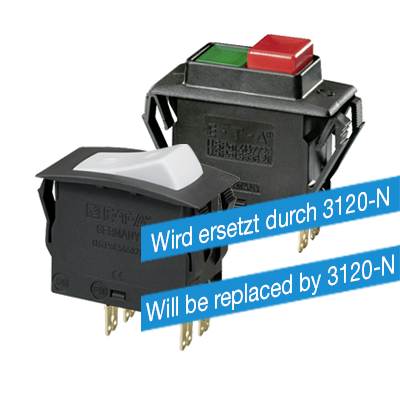

Type: 3120-F

An extremely versatile range of rocker switch/thermal circuit breakers (S-type TO CBE to EN 60934 with trip free mechanism) offering the choice of single pole, double pole with single pole protection, and double pole with protection on both poles. Designed for snap-in panel mounting with versions available for three different panel cut-out sizes. Illumination is optional and there is a range of colours and markings for the rocker. Under overload conditions the rocker returns to the OFF position. 6-way frame for 3120-F5 available upon request.
Any one of the following additional function modules can be supplied factory fitted to the rear of the switch/circuit breaker.
• Undervoltage release coil (for double pole versions only).
• Magnetic trip coil for short circuit protection.
• Magnetic trip coil for remote relay trip.
• Auxiliary contacts for status signalling.
• Mechanical slide interlock.
Approved to CBE standard EN 60934 (IEC 60934).

Data sheet

Technical Data

Voltage rating:
  • AC 240 V (AC 415 V to special order)
  • DC 50 V
  • UL/CSA: AC 250 V
Current ratings:
from 0.1 A to 20 A
(up to 30 A to special order, single pole only)
Typical life:
0.1...16 A 50,000 operations at 1 x IN, inductive, double pole
0.1...20 A 30,000 operations at 1 x IN, inductive, single pole
Interrupting capacity Icn:
0.1...2 A: 10 x IN
2.5...20 A: 150 A single pole
2.5...20 A: 250 A double pole
Number of poles:
  • single pole
  • double pole
Mounting method:
  • flange
Terminal design:
  • blade terminals
  • screw terminals
Actuation:
  • rocker
Auxiliary contacts:
  • with auxiliary contacts
  • without auxiliary contacts
Water splash protection:
  • with water splash protection
  • without water splash protection
Illumination:
  • with illumination
  • without illumination

Accessories

Order numberDescription
X3120-Saux. contact module
X3120-Mmagnetic module
X3120-Uundervoltage release module
X 221 619 01water splash cover, transparent
X 222 143 01translucent water splash cover
Y 303 068 01insulated cover
Y 303 675 01spacer for -F3...
panel thickness < 2 mm
Y 303 675 02spacer for -F3...
panel thickness < 4 mm
Y 303 676 01spacer for -F5...
Y 303 862 01terminal adapter
Y 303 885 31blanking piece
Y 304 275 01water splash cover black
Y 307 097 01spacer

Applications

  • Watercraft & Vehicles
  • Rail Vehicles
  • Medical Equipment
  • Telecom & Datacom
  • Minus DC 48 V
  • Household, Hobby & Garden Equipment
  • Lighting Equipment
